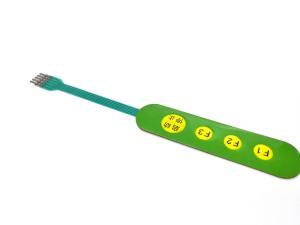

Tactile Rasied Buttons Membrane Button Panel With Nicomatic Female Connector
Applications
- Industrial Controls: Employed in control panels for machinery and equipment.
- Automotive: Found in dashboards and control systems in vehicles.
- Consumer Electronics: Used in remote controls, microwaves, and other home appliances.
- Medical Devices: Common in equipment where cleanliness and ease of use are critical.
Key Features
-
Easy to Clean: The smooth surface can be easily wiped clean, making it ideal for environments that require hygiene.
-
Quiet Operation: Membrane buttons operate silently, which can be advantageous in environments where noise is a concern.
-
Thin and Lightweight: Membrane panels are typically much thinner than mechanical buttons, making them suitable for compact designs.
-
Sealed Design: They are often designed to be sealed against dust and moisture, which helps improve durability and reliability.
-
Customizable: Graphics and button layouts can be easily customized for specific applications, allowing for unique designs.
Advantages
- User-Friendly: Intuitive designs can enhance user experience.
- Cost-Effective: Generally less expensive to produce than traditional mechanical switches.
- Versatile: Can be used in a wide range of applications due to their customizable nature.
Considerations
When designing or selecting a membrane button panel, consider factors like:
- Electrical Specifications: Ensure compatibility with the electronic components in use.
- Durability: Ensure the materials are suitable for the intended environment.
- User Feedback: Decide if tactile feedback is necessary, as many membrane buttons do not provide this.
Specification:
1)Material (for front or face overlay)
Polyester:
1.Highly versatile for embossing
2.Highly resistant to chemicals
3.Better durability
4.For internal and external use, UV resistance
Polycarbonate:
1.Different surface(Glossy, Matt) and thickness(From 0.12mm~2mm)
2. cost-effective in price
3.For internal and external use
2) Embossing
Rim embossing/pillow embossing/dimple embossing
Graphic overlays can be embossed in order to insert domes/LED, leave space for mechanical keys/LED and provide tactile indications and better tactile feeling.
3)Windows(for display function)
1. print different colors windows, As transparent grey/Red/green window for display
2. Clear/Transparent window for LCD display
2. Matt/semi-transparent window for LED
4)Keys/buttons
Tactile keys---with metal dome or poly dome
Non-tactile--silver printing dots with flat key
5) Embeded LEDs
Small, brilliant lights only about 0.02’’ in height. Avaliable in several vibrant colors.
LED colors: white, yellow, orange, green, red, or double colors LED.
6)Cable
It is an extension of the printed circuit and is used to communicate with your device.
7)Types of connector
1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector
8) EMI / RFI / ESD Shielding
use an aluminum foil shielding / a clear ITO electrical conductive polyester
9)Adhesive
mostly used are 3M-double-side glue
10)Backplate-
in aluminum, polycarbonate, acrylic, PCB
Product index:
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available
Operating voltage: 35V DC
Operating current: 100mA 1W
Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
