Four Color Mate Surface Membrane Key Pad With LED Illuminated

Name: Four Color Mate Surface Membrane Key Pad With LED Illuminated
Brand: Taida
Price: 1 USD

China Four Color Mate Surface Membrane Key Pad With LED Illuminated factory

Brand Name : Taida

Model Number : 20241026-6

Certification : ISO9001,SGS,ROHS,REACH,UL

Place of Origin : DongGuan of China

MOQ : 100 pcs

Price : communication

Payment Terms : Western Union, T/T,PAYPAL

Supply Ability : 10000 +pcs +a Month

Delivery Time : 4-5 days for Samples making ;10-13 days for Batch goods

Packaging Details : PE bags first and Foam in Carton and etc

Material : Polyester or Polycarbonate ,silicone or other request

Color : Pantone, RAL CMYK ,RGB or samples

Pitch of Connect : 1.0MM ,1.25MM .2.54MM or 0.5MM,0.3MM pith

Adhesive : 3M adheisve or other reuqest

Button type : Poly dome or Metal snap dome

Size : Custom design

Printing Method : Screen printing ,digital printing or gradient dot printing

total Thickness : 0.8mm-1.5mm

LED color : Blue ,white ,red or other request

LED type : 0805 ,0603 or other

LED window : Semi-transparent white or clear

Contact Now

Four Color Mate Surface Membrane Key Pad With LED Illuminated

Digital printing and screen printing are two distinct printing techniques that differ in their approach, capabilities, and applications. Here are the key differences between the two:

Features

Operation:
- When a button is pressed, the top layer makes contact with the underlying circuit, completing an electrical connection that sends a signal to the device.
Construction:
- Composed of several layers, including a flexible printed circuit board (PCB), a spacer layer, and a top overlay that has printed graphics.
Durability:
- Generally resistant to dust and moisture, depending on design specifications. However, they may not be as durable as mechanical switches.
Design:
- Often customizable in terms of size, shape, and layout, making them suitable for various applications.
Cost-Effective:
- Typically cheaper to manufacture than mechanical keypads, making them a popular choice for consumer electronics and appliances.

Membrane switch Performance Index:

Environmentl	Operating Temperature	-40°C to +80°C (-40°to 176°F)
	Storage Temperature	-40°C to +85°C (-40°to 185°F)
	Humidity	40°C, 90% to 95% for 240 hours
	Vibration	20G's max.
Mechanical	Actuation Force	Non-tactile 60g to 300g (2oz to 10oz)
		Tactile 150g to 400g (6oz to 14oz)
	Switch Stroke	Non-tactile 0.1 to 0.5mm
	Life Expectancy	Tactile 0.6 to 1.5mm
		Non-tactile >5 million actuations
		Tactile >1 million actuations
Electrical	Operating Voltage	35 volts maximum
	Operating Current	10 micro amps to 100 milliamps, resistive
	Operating Power	1 watt maximum
	Circuit Resistance	10 ohms to 500 ohms, dependent on size and layout
	Insulation Resistance	100M ohms at 100V DC
	Dielectric Withstand	>250 VRMs (50-60Hz 1 minute)
	Contact Bounce	≤ 5 milliseconds

Our Services :

1 Reply your inquiry within 24 working hours

2 Customize design is available ,OEM and ODM are welcome

3 Experienced Staffs answer your all question in professional and fluent English

4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs

5 Good service ,High quality ,test all goods and short lead time supply

More Photos show :

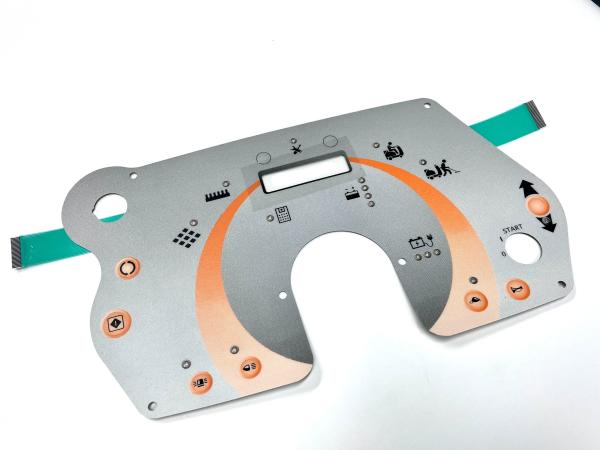

Four Color Mate Surface Membrane Key Pad With LED Illuminated
